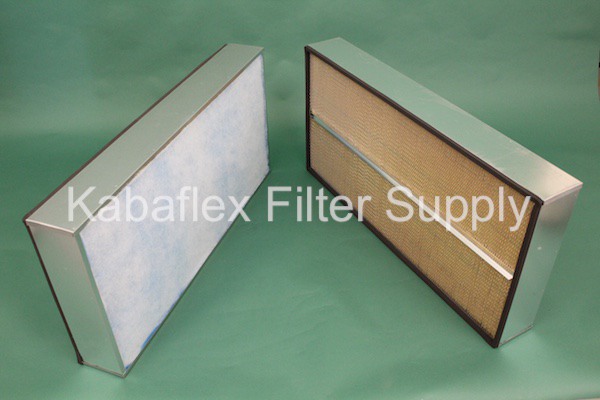

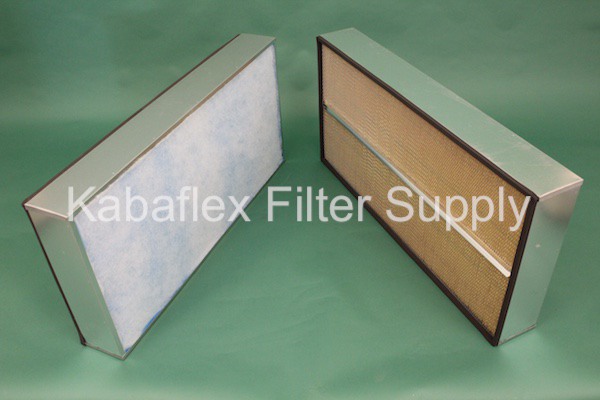

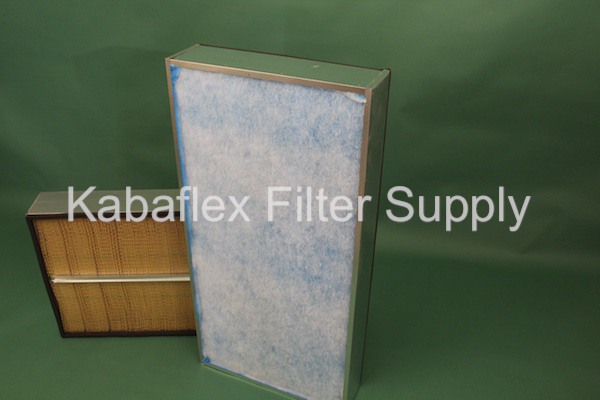

Kabaflex INTAKE AIR FILTER ELEMENT – KAF 5306D

Original price was: $79.69.Current price is: $72.44.

FLEETLIFE FA 5306D

SKU: KAF5306D FA5306D FA-5306D Category:

PRODUCT DETAILS

Download Product Specs

Performance Data

  • Micron Rating: 15.00 NOMINAL
  • Beta Rating:
  • Collapse Pressure Rating:
  • Maximum Temperature: 180 F
  • Direction of Flow: OUTSIDE->IN
  • Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications

  • (A) Outer Diameter, Top:39.0 IN (990.60 MM)
  • (B) Outer Diameter, Bottom: 39.0 IN (990.60 MM)
  • (C) Inner Diameter, Top: 11.12 IN (282.44 MM)
  • (D) Inner Diameter, Bottom: 11.12 IN (282.44 MM)
  • (E) Length: 39.00 IN (282.44 MM)
  • (F) Thread: N/A PANEL Physical Specifications
  • Handle: NONE
  • Seal Material: NEOPREN
  • Type of Adhesive:
  • Type of Endcap: GALV. METAL
  • Center Tube: STEEL
  • Type of Media: PAPER
  • Filter Area: 127 SQ.FT.
  • Plating:
  • Outer Jacket: YES
  • Configuration: N/A 39 X 11.12

Packaging Specifications

  • Number per Carton: 1
  • Carton Weight: 26.00 LB (11.80 KG)

Additional information

Weight 13 lbs
Dimensions 19.25 × 19.5 × 19.38 in
