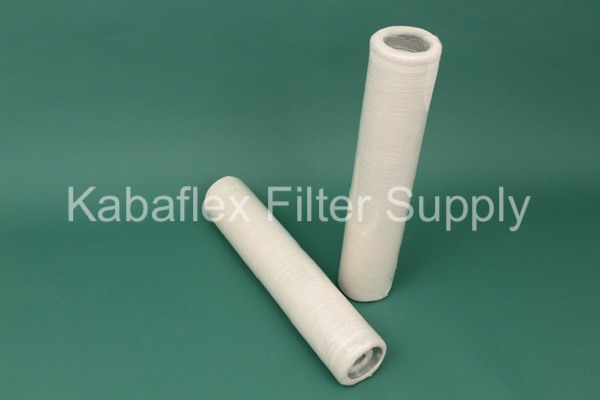

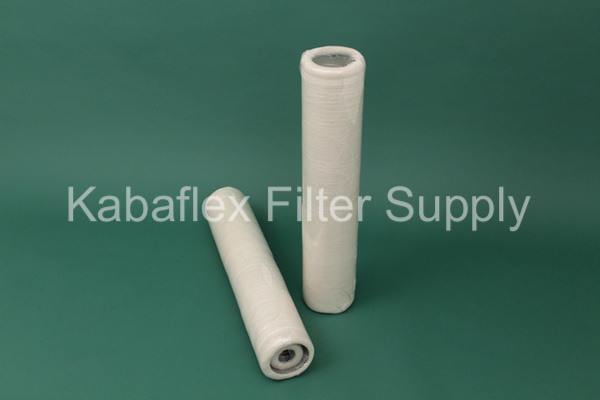

Kabaflex DEPTH TYPE ELEMENT – KFS 24D

PRODUCT DETAILS

Performance Data

• Micron Rating: 5.00 ABSOLUTE
• Beta Rating:
• Collapse Pressure Rating:
• Maximum Temperature:
• Direction of Flow: OUTSIDE->IN
• Recommended Changeout Differential Pressure: 25 PSID

Dimensional Specifications

• (A) Outer Diameter – Top: 5.25 IN (133.35 MM)
• (B) Outer Diameter – Bottom: 3.37 IN (85.60 MM)
• (C) Inner Diameter – Top: 4.00 IN (101.60 MM)
• (D) Inner Diameter – Bottom:
• (E) Length: 27.25 IN (50.80 MM)
• (F) Thread: NONE

Physical Specifications

• Handle: NONE
• Seal Material:
• Type of Adhesive:
• Type of Endcap: PLATED STEEL
• Center Tube:
• Type of Media: SYNTHETIC
• Filter Area: SQ.IN.
• Plating:
• Outer Jacket: NONE
• Configuration:

Packaging Specifications

• Number per Carton: 4
• Carton Weight: 23.00 LB (10.43 KG)
