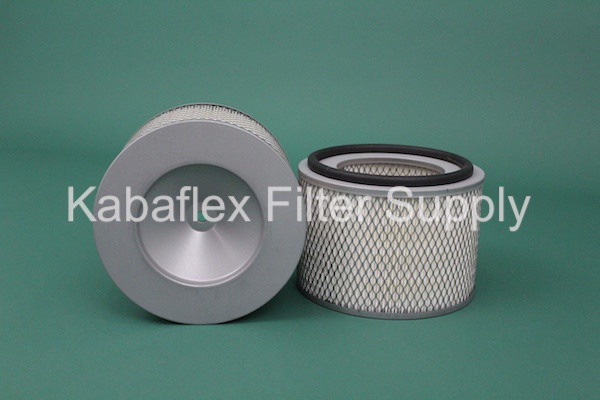

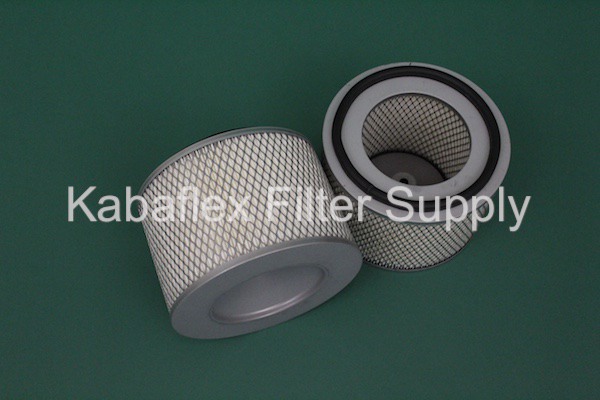

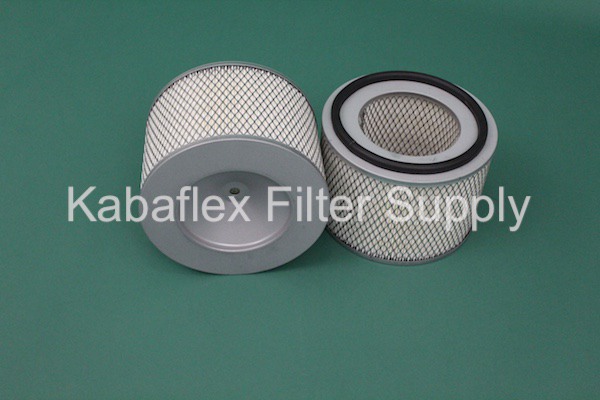

Kabaflex INTAKE AIR FILTER ELEMENT – KAF 4L9851 7BH

PRODUCT DETAILS

Performance Data

• Micron Rating: 15.00 NOMINAL
• Beta Rating: N/A
• Collapse Pressure Rating: N/A
• Maximum Temperature: 250 F
• Direction of Flow: OUTSIDE->IN
• Recommended Changeout Differential Pressure: 20 PSID
• Dimensional Specifications
• (A) Outer Diameter, Top: 10.41 IN (264.41 MM)
• (B) Outer Diameter, Bottom: 10.41 IN (264.41 MM)
• (C) Inner Diameter, Top: 6.03 IN (153.16 MM)
• (D) Inner Diameter, Bottom:
• (E) Length: 8.25 IN (0.00 MM)
• (F) Thread: NONE

Physical Specifications

• Handle: NONE
• Seal Material: BUNA-N
• Type of Adhesive: PLASTISOL
• Type of Endcap: PLATED STEEL
• Center Tube: PLATED STEEL
• Type of Media: PAPER
• Filter Area: SQ.IN.
• Plating: NONE
• Outer Jacket: YES – METAL
• Configuration: SINGLE OPEN END
• Packaging Specifications
• Number per Carton: 1
• Carton Weight: 5.00 LB (2.27 KG)
