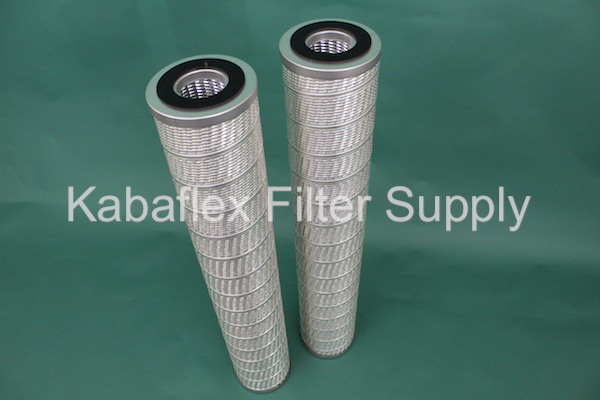

Kabaflex PLEATED PAPER ELEMENT – KFP 636-25

Original price was: $32.87.Current price is: $29.88.

FLO-LINE LIQUID Q 736-20

SKU: KFP636-25 Q736-20 Category:

PRODUCT DETAILS

Download Product Specs

Performance Data

  • Micron Rating:
  • Beta Rating:
  • N/A
  • Collapse Pressure Rating: 100 PSID
  • Maximum Temperature: 225 F
  • Direction of Flow:OUTSIDE->IN
  • Recommended Changeout Differential Pressure:20 PSID

Dimensional Specifications

  • (A) Outer Diameter, Top:6.00 IN (152.40 MM)
  • (B) Outer Diameter, Bottom:6.00 IN (152.40 MM)
  • (C) Inner Diameter, Top:2.63 IN (66.80 MM)
  • (D) Inner Diameter, Bottom:2.63 IN (66.80 MM)
  • (E) Length:36.00 IN (66.80 MM)
  • (F) Thread:NONE

Physical Specifications

  • Handle:NONE
  • Seal Material:BUNA-N
  • Type of Adhesive:EPOXY
  • Type of Endcap:PLATED STEEL
  • Center Tube:PLATED STEEL
  • Type of Media:PAPER
  • Filter Area:64 SQ.FT.Plating:ELECTROTIN PLATED
  • Outer Jacket:YES – METAL
  • Configuration:DOUBLE OPEN END

Packaging Specifications

  • Number per Carton:6
  • Carton Weight: 40.00 LB (18.14 KG)

Additional information

Weight 40 lbs
Dimensions 6 × 36 × 36 in
